EK-3010 Digital Temperature Controller: Precision at Your Fingertips

Product General Information:

Description:

The EK-3010 Digital Temperature Controller is a cutting-edge solution designed for precise temperature control in industrial and commercial applications. Built with advanced technology and user-friendly features, it is ideal for various environments where accuracy and reliability are essential.
High-Precision Control

The EK-3010 offers precise temperature monitoring and regulation with an accuracy of ±0.1°C, ensuring optimal performance in critical processes.

Wide Temperature Range

Capable of handling a broad range from -50°C to 300°C, this versatile controller is suitable for a wide array of industries including HVAC, food processing, and laboratory applications.

User-Friendly Interface

The large, easy-to-read LED display makes it simple to monitor and adjust temperature settings. Intuitive controls allow users to quickly set and modify parameters without complex programming.

Durability and Reliability

The EK-3010 is built to withstand harsh environments, with a robust design that ensures long-lasting performance. It is perfect for use in demanding industrial settings.

Energy Efficiency

This controller is designed with energy-saving capabilities, automatically adjusting to prevent energy waste while maintaining stable temperature conditions.

Multiple Output Modes

With flexible output options, including relay and SSR (Solid State Relay), the EK-3010 can be seamlessly integrated into various systems to meet your specific requirements.

Applications:

Specifications:

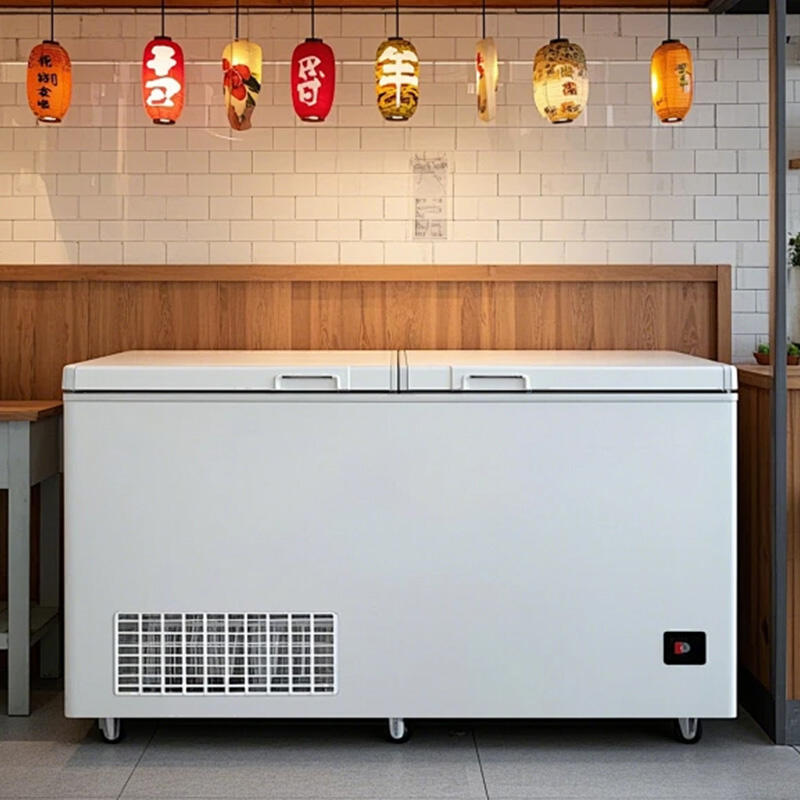

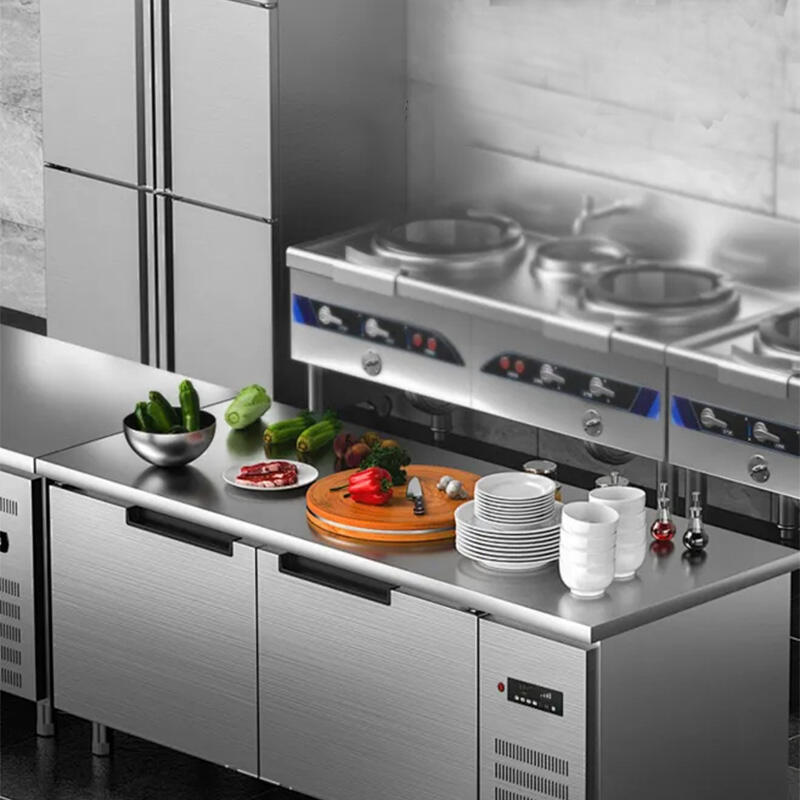

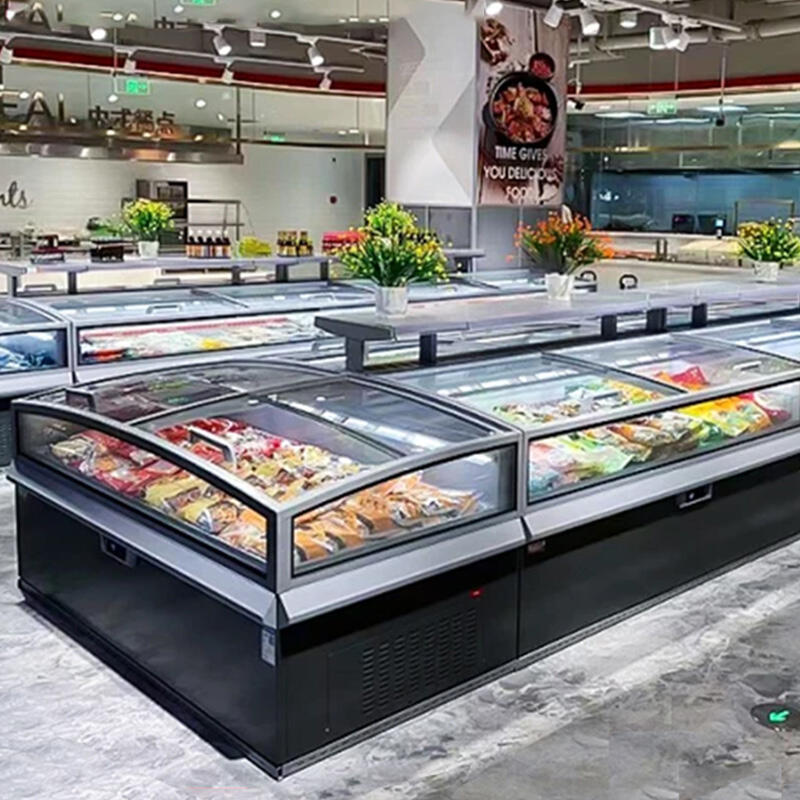

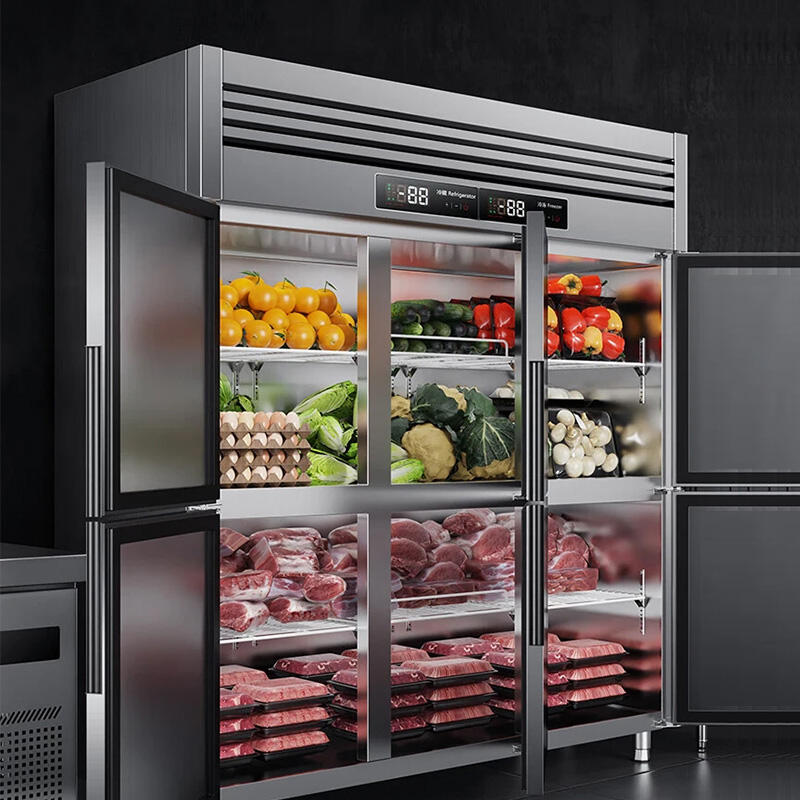

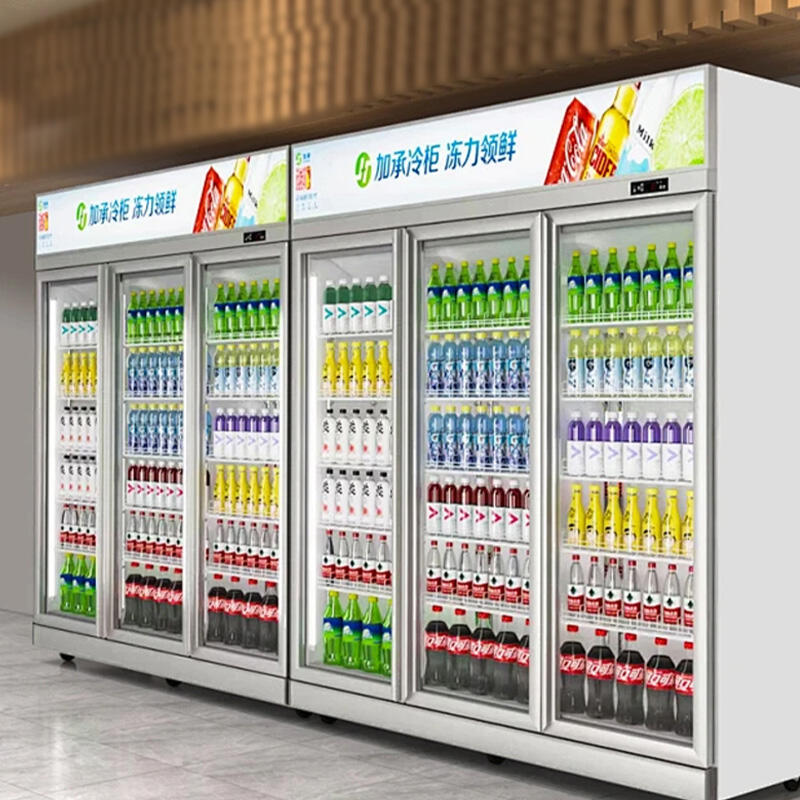

1. The controller is suitable for temperature control of medium and low temperature cold storage and heating equipment.
2. With temperature measurement, display and control functions; temperature correction; temperature over-temperature and sensor failure alarm;
3. One-key restoration of factory settings; a set of parameters can be preset and one-key restoration;
4. Using touch buttons, with button lock function.

1. Temperature measurement range: -40℃~99℃
2. Temperature control range: -40℃~85℃
3. Accuracy: ±1℃ at(-30℃~50℃); ±2℃ other ranges
4. Resolution: 0.1℃
5. Relay capacity: 10A/220VAC
6. Power supply: 220VAC ±10%, 50/60Hz
7. Ambient temperature: -10℃~60℃
8. Probe type: NTC (10KΩ/25℃, B value 3435K)

Specification:

1. Product size: 85*35*64mm
2. Installation size: 71*29mm
